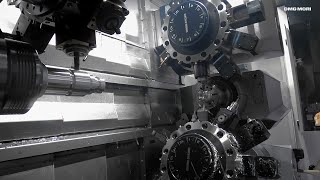

Machining on the CTX 350 4A: High Performance Universal Turning
The latest generation of the CTX series turning centers combines a compact design with a larger working area, all while maintaining a small footprint – just 7 m² in the case of the new CTX 350 4A.
Equipped with two VDI30 turrets and up to 28 tool positions, the CTX 350 4A delivers exceptional versatility. Its driven tools reach speeds of up to 12,000 rpm with a torque of 14 Nm. The universal turning center features a left-hand spindle (ISM 65) operating at up to 5,500 rpm with 171 Nm of torque, and a right-hand spindle (ISM 50), which runs at 6,000 rpm with 93 Nm of torque. Both turrets can work independently on each spindle as well as simultaneously on one, enabling highly efficient six-sided complete machining of workpieces up to ø 230 x 100 mm. The Y-axis travel extends +/- 50 mm., and the machine supports bar capacities of ø 65 mm, with a standard bar loading connection for seamless automation.
Designed for efficiency and precision, the CTX 350 4A ensures fast, reliable performance with optimal chip removal and state-of-the-art components. The 24” control panel with CELOS X on Siemens enhances connectivity for digitized production, while an alternative FANUC control is also available.
